Khoom nta:

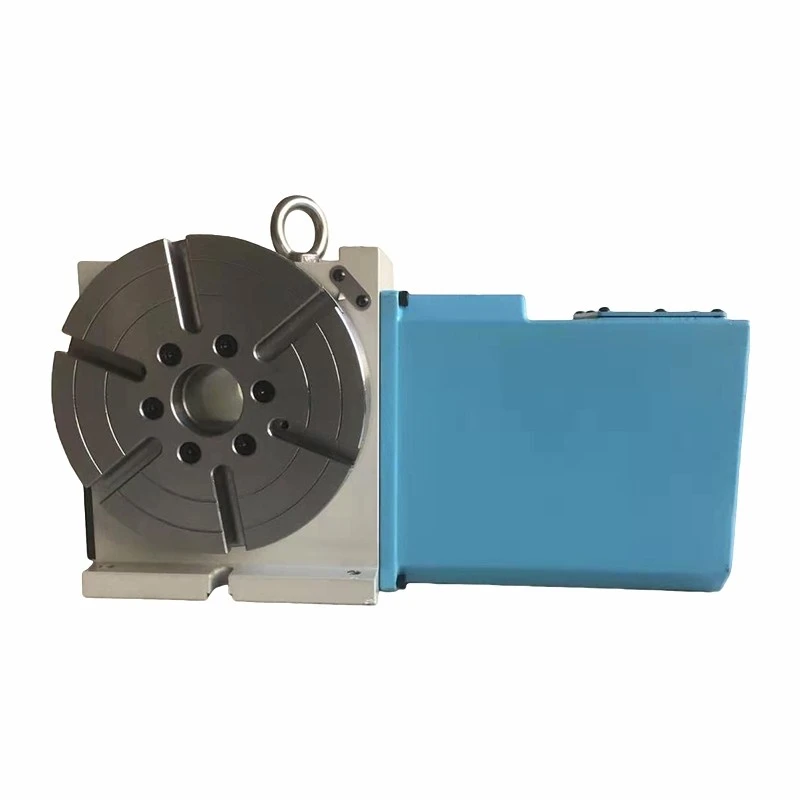

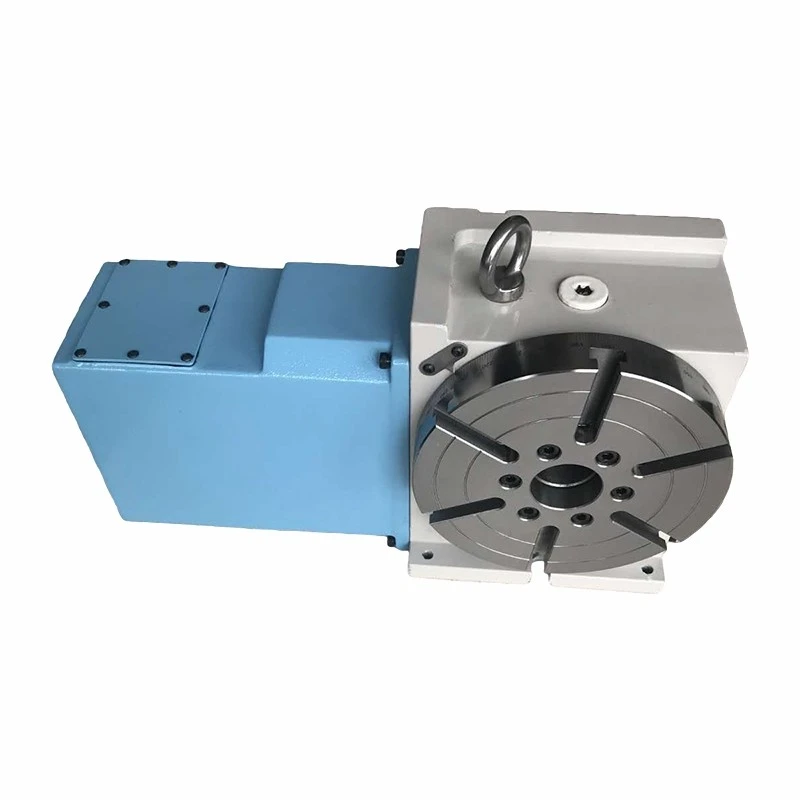

Lub High Precision 4th Axis Rotary Table txhua tus txais radial-axial bearings. Cov iav iav muaj nyob rau hauv cov khoom siv tooj liab thiab hlau alloy. Ntawm lawv, alloy steel worm gears muab superior hnav tsis kam thiab siab dua torque piv rau cov tooj liab, ua rau lawv tiv taus ntau dua rau kev thauj khoom -induced hnav thaum siv rau lub qaij axis ntawm 4-axis tshuab.

1.High Precision: Nruab nrog Japanese-tsim ob npaug - txhuas cov iav iav teeb. Cov khoom siv worm iav muab kev txhim kho hnav tsis kam thiab ua haujlwm ntev dua.
2.High Rigidity: Txais radial-axial bearings, uas tuaj yeem yooj yim ua haujlwm hnyav- lub luag haujlwm txiav.
3.Versatility: Features loj - aperture tsim nyob rau hauv tag nrho cov qauv, ua kom yooj yim fixture daim ntaub ntawv.
4.Waterproof Performance: Tag nrho cov ntaub ntawv tsis muaj dej tsis muaj hlau tsim nrog kev ntsuas dej tsis zoo ntawm IP65 lossis siab dua.
5.Aesthetic Design: Xim - qib sab nrauv tiav yog siv rau txhua tus qauv, embodying tus tshiab aesthetics ntawm mechanical craftsmanship.

Dimension:

Qauv	A	B	C	D	E	F	G	H	I	J	K	L	M	Φ	P	D
TSW-12160	132	233	200	183	13	18	125	16.5	18	8	10	147	92.5	Φ160	210	Φ32
TSI-12200	132	233	200	183	13	18	135	20	18.5	8.5	12	147	93	Φ200	230	Φ42

Kev Siv Cable:

Lub High Precision 4th Axis Rotary Table muaj 2pins cable thiab 2 xov hlau (dawb) ntawm no:
2 pins cable yog rau lub tsev hloov (NC hom), nws muaj 2 xov hlau:
xim av thiab xiav

(yog tias koj lub cnc maub los xav tau 0v raws li lub teeb liab tawm tswv yim hauv tsev, ces thov txuas xiav rau 0v thiab xim av rau lub teeb liab hauv tsev)

(yog tias koj tus cnc maub los xav tau 24v raws li lub teeb liab tawm tswv yim hauv tsev, ces thov txuas xim av rau 24v thiab xiav rau lub teeb liab hauv tsev)

Ob lub xov hlau dawb yog rau BRAKE solenoid li qub DC24V + , - POWER. Lub nres yog ib txwm qhib hom, thaum huab cua xovxwm
solenoid ua haujlwm, nres ua haujlwm.
